ACCESS 30 48/20

AA4240

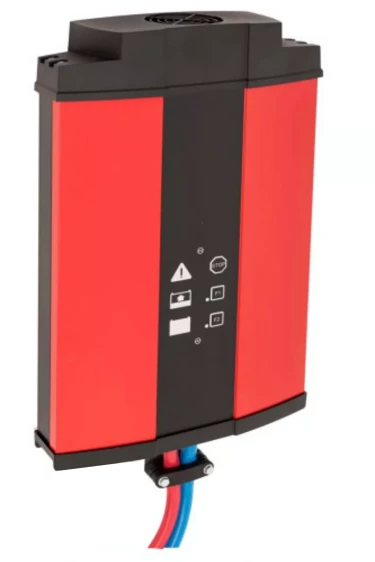

Access 30 is a 1-phase industrial battery charger with capacities up to 3 kW. Access 30 comes in two versions, with and without display. Access 30 with display is a powerful and intelligent IP20-rated battery charger. Access 30 without display has an IP54 enclosure, designed for harsh environments. As an option the latter can be delivered with an IP66 enclosure.

Data sheet

Download datasheet

Output Voltage

48 V

Output Current

20 A

Number of phases

Rated Voltage range

220-240 V

Shipping Weight

6 kg

Ingress protection

IP54 (IP66 optional)

Certifications

Reporting

Yes

Current at nominal voltage

5,5 A

8 Hours cap.ah/5h

166

12 Hours cap.ah/5h

275

Cabinet Type

A10

State-of-the-art High Frequency battery charger for industrial applications.

HF industrial battery charger based on advanced technology

Flexible and suitable for onboard or as wall mounted

Wireless communication via radio or NFC

Compatible with smart system solutions

CE, CSA and UL certified

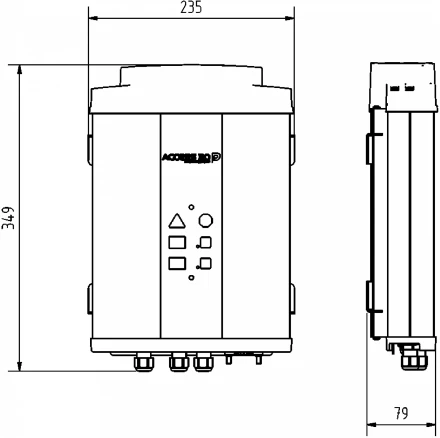

A10

349 X 235 X 79

Air Pump

An alternative to ionic mixing where air bubbles are used to mix the battery acid. The air pump is fully integrated in the battery charger.

Automatic water filling

All our industrial High Frequency battery chargers can be equipped with a solenoid valve which is connected to the batteries water filling system. The system will automatically refill water into the battery when needed.

Safe Disconnect

All our industrial High Frequency battery chargers will automatically start when the battery charger is connected to the battery. Likewise it will automatically stop when the charger is disconnected. This option eliminates the risk of sparks when disconnecting the battery charger.

Battery Monitoring Unit (BMU)

The BMU (Battery Monitoring Unit) is a very efficient tool for surveillance of your batteries. The BMU is communicating wirelessly both with the most of Micropower's battery charger and the Service Tool. For more information about the BMU please click here.
