Micropower SC17-LI-CAN 24/60

VM2340

The Micropower SC battery charger series is the latest generation of industrial chargers from Micropower Group. Micropower SC is easy-to-use, powerful and always ready to connect to smart system solutions.

Data sheet

Download datasheet

Output Voltage

24 V

Output Current

60 A

Number of phases

Rated Voltage range

220-240 V

Shipping Weight

9 kg

Ingress protection

IP20

Certifications

Reporting

Yes

Current at nominal voltage

8,6 A

8 Hours cap.ah/5h

500

Cabinet Type

A51

The Micropower SC17-LI-CAN battery charger is user-friendly battery charger, compatible with the GET Fleet Management System from Micropower. The charger is intended for stationary battery charging of Lithium-ion batteries, with CAN Bus communication.

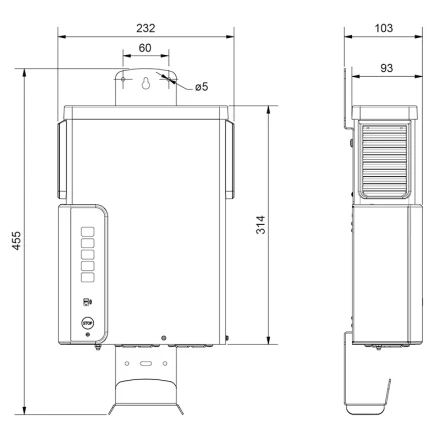

D2

315 x 220 x 90

CAN-bus

The CAN-bus communication makes the battery charger very versatile and adds the possible to communicate with other systems using CAN-bus.

Safe Disconnect

All our industrial High Frequency battery chargers will automatically start when the battery charger is connected to the battery. Likewise it will automatically stop when the charger is disconnected. This option eliminates the risk of sparks when disconnecting the battery charger.

Step file

MICROPOWER SC23–SC32 - 3D model [STEP file]

17.81 MB

MICROPOWER SC8–SC13 - 3D model [STEP file]

8.44 MB

MICROPOWER SC - User manual 'multi-language version' (pdf)

2.97 MB

MICROPOWER SC23–SC32 - Wall bracket top drawing

38.28 KB

MICROPOWER SC8–SC13 - Wall bracket bottom drawing

45.43 KB

Product brochure

MICROPOWER SC - Product Brochure

4.07 MB

Other docs
