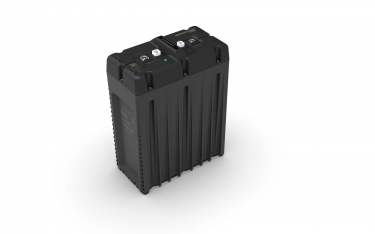

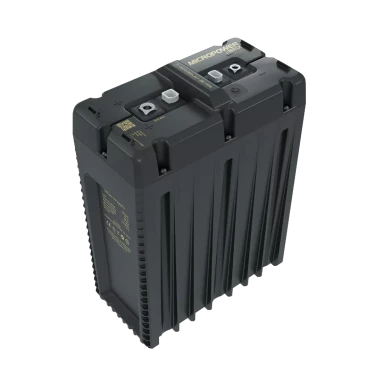

cBRIX Lithium-Ion Battery Pack 24V
Chemistry Type
NCA
Nominal Voltage
25,5 V
Operational Voltage Range
18,2 - 28,5 V
Rated Capacity
48 Ah
Nominal Energy
1220 Wh
Continuous Discharge Current (max)
38 A
Continuous Charge Current (max)
38 A
Charging Temperature Range
5 to 45
Life Cycles
≥ 3000 (Capacity ≥ 70%)
Weight
6.4 kg
Dimensions
271 x 201 x 105 mm
cBRIX Lithium-Ion Battery Pack 24V

CBRIX

cBRIX50 is a complete, compact and lightweight 24V 48Ah battery pack with possible CAN-bus integration.
Micropower cBRIX50 is a complete, compact and lightweight 24V 48Ah battery pack. The battery can be full machine / vehicle integrated with CAN-bus. Micropower cBRIX is standardized Lithium ion battery pack. Combined with a stationary or onboard industrial High Frequency Lithium ion battery charger from the Lion series, you get a complete Lithium ion battery solution from Micropower Group.
COMPLETE BATTERY SYSTEM
The battery can be used as a plug and play solution or combined together with Micropowers Lion series of Li-ion battery chargers, available both for stationary and onboard charging. Full integration with vehicle/machine is possible through CAN-bus communication.

GREEN ENERGY
The new environmental demands with zero Co2-emission is realized with Lithium technology. Lithium is the environmentally friendly alternative for industrial battery applications.
